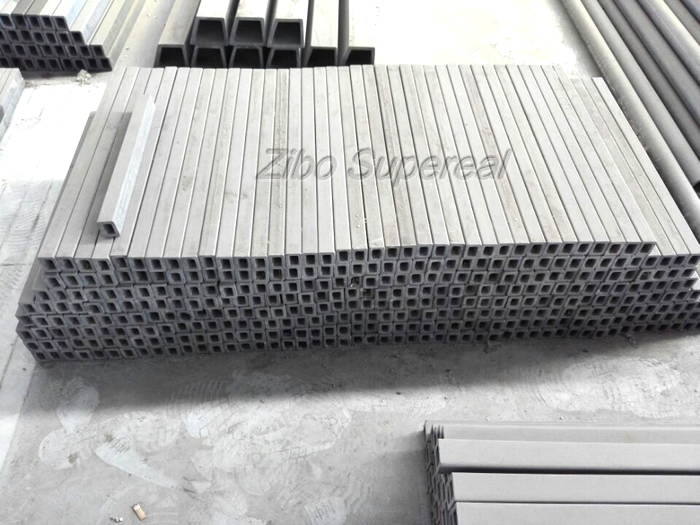

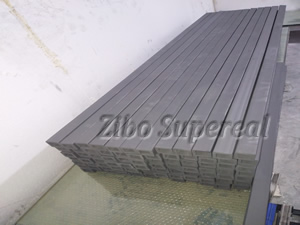

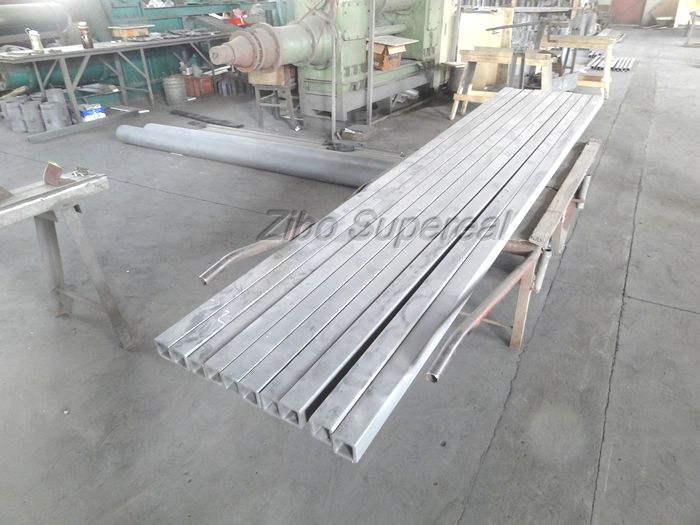

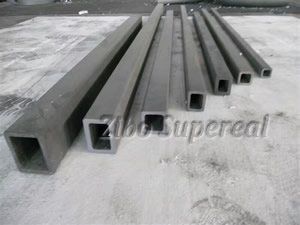

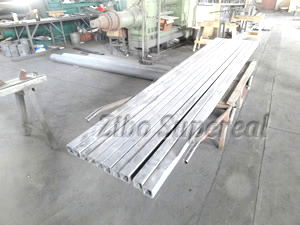

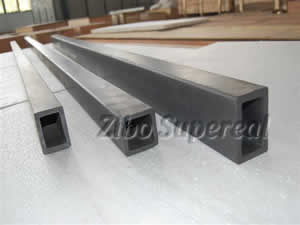

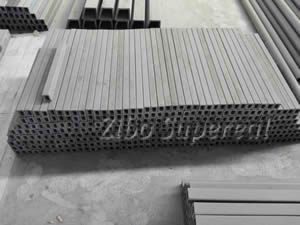

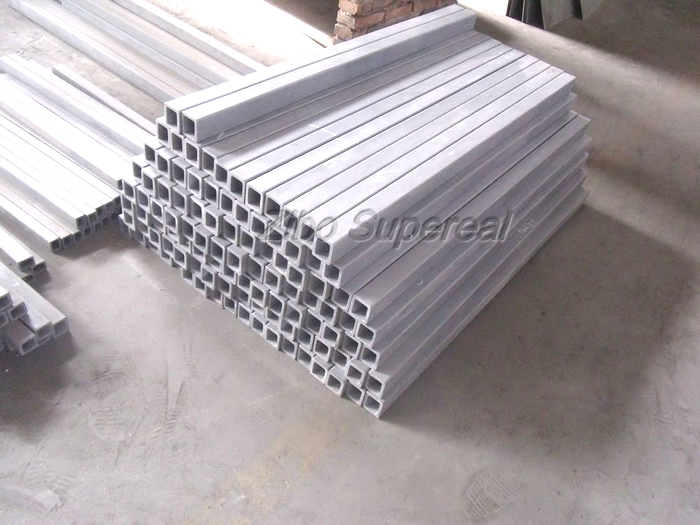

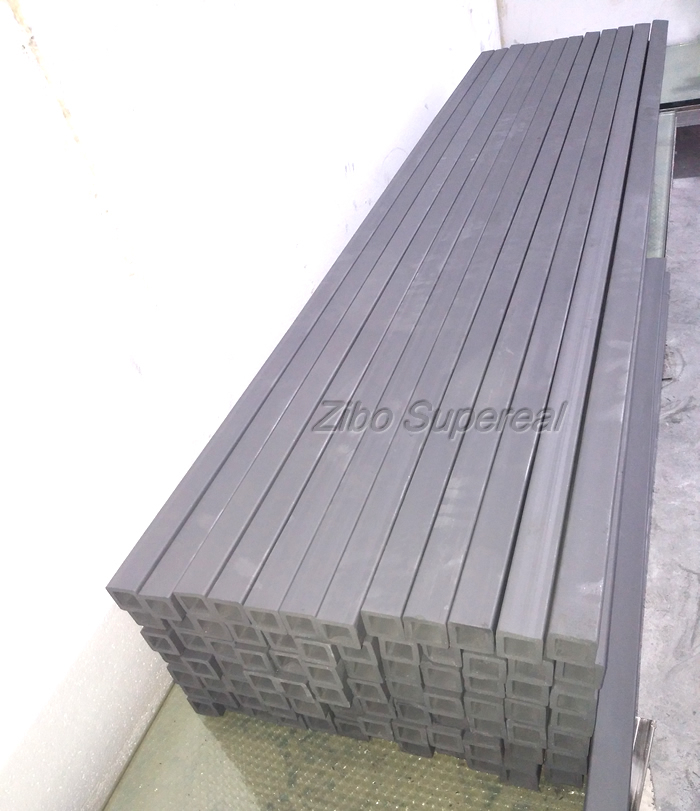

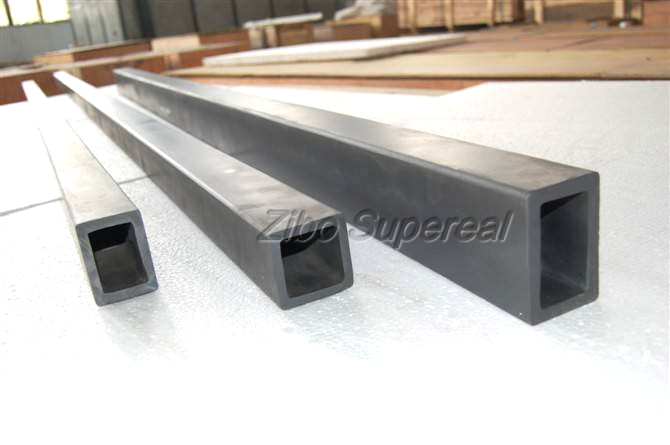

 Silicon carbide beam |
|
|
| RBSiC(SiSiC) beams are widely used for the loading structure systems of tunnel kilns shuttle kilns, roller hearth kilns and other industrial kilns. RBSiC beams have higher bending strength oxidation resistance, and there is no deformation when it works for long term at high temperature.
RBSiC beams are the most suitable kiln furnitures for sanitarywares and electrical porcelain applications.
|
| Main Technical Data: |
| ITEM |
UNIT |
DATA |
| Max working temperature |
℃ |
1380 |
| Bulk density |
g/cm3 |
3.02 |
| Open porosity |
% |
＜0.1 |
| Bending strength |
Mpa |
250（20℃） |
| 280（1200℃） |
| Modulus of elasticity |
Mpa |
330（20℃） |
| 300（1200℃） |
| Thermal conductivity |
Gpa |
45（1200℃） |
| Coefficient of thermal expansion |
Gpa |
4.5 |
| Moh’s hardness |
W/m·k |
13 |
| Acid alkaline-proof |
Excellent |
|
|
|
|
|
